How Was This Picture Made #03: The Answer

First, thanks to everybody who weighed in with their strategies to make the image in question. Some very good sleuthing on behalf of our readers and as you’ll see the answer is a combination of a lot of your suggestions and keen observations. The answer to how the life-sized condor print was made was based on biological knowledge, technological application at the DSLR level and use of sophisticated software.

The Biology

Condors can fly up to 200 miles a day in search of a fresh carcass to feed on. When you fly that much, you need to keep every feather in tiptop shape. Wing sunning is a ritual performed every morning. While the actual purpose of the sunning behavior is debated, one theory is that the heat of the sun warms and softens the keratin in the bird’s feathers, allowing the feathers to take on optimal shaping. Whatever the purpose, I knew if I could find the right condor in the right setting I had a chance at my shot. Though condors sometimes rotate a bit while sunning, they generally orient their spread wings perpendicular to the sun and hold relatively still. If I got lucky, one would hold still long enough that I could snap multiple frames of it to stitch later.

Knowing the likely whereabouts of the condors was key. I scouted several possible roosting spots along the South Rim of the Grand Canyon, but never had luck with finding the birds there in the good morning light.

I tried for the shot again in Utah, but as the condors roost in trees there instead of on cliffs, I was shooting upwards at an angle I didn’t like.

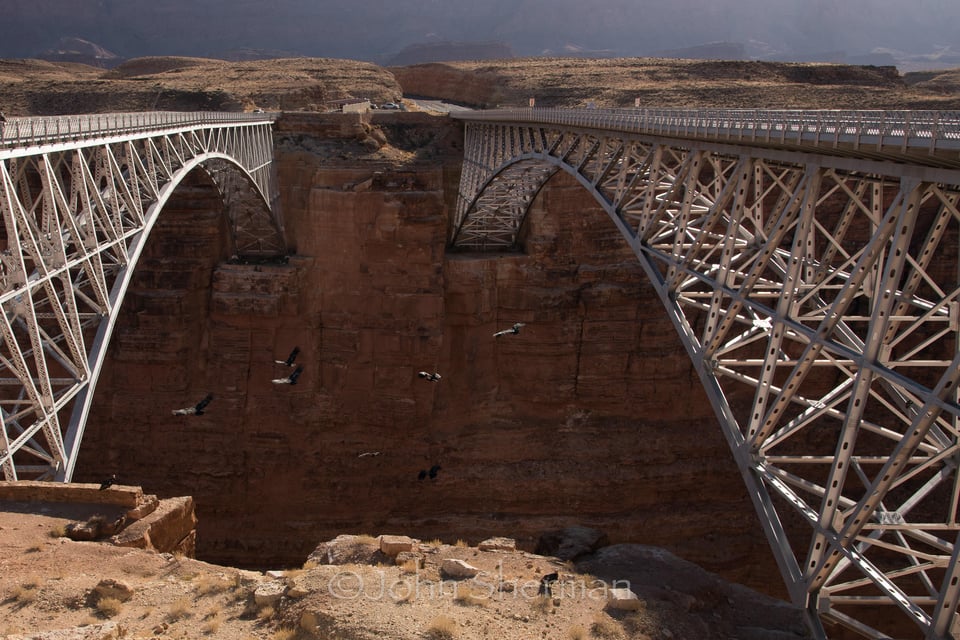

Finally I hit pay dirt at Navajo Bridge. Decades back the original bridge crossing the Colorado River was replaced by a new bridge parallel to it and about 140 feet away. The bridges make ideal roosts for condors, much to the delight of onlookers at the walkover bridge.

I showed up before sunrise and Condor 354 was perched on a girder of the vehicle bridge. I could shoot from the pedestrian bridge and have him at eye level for the shot – ideal. Also the morning sun would be coming in at a nice angle. Next came the waiting – would 354 sun his wings while the light was still good? Condor 354 rewarded my patience (I’d been trying for months to get this shot) and spread his massive wings in the warm early morning light.

The camera stuff

To get the resolution I wanted I would not just need a high resolution camera, but would need to stitch multiple high res files together. This would require being close enough to the bird that just a portion of the bird would fill the frame. The South Rim locations I’d scouted seemed ideal as I could shoot a full frame DSLR with a 500mm lens and be close enough to fill the frame with half a wing or so. However the Navajo Bridge location required me to shoot from one bridge across a 140 foot gap to the other bridge. At that distance and angle the entire bird would pretty much fill a D810 frame.

Time to go for all the reach I could muster. I took a Nikon D7200 and put an 800mm on it with a 1.25x teleconverter. This gave me an equivalent focal length of 1500mm. The D7200 has a tighter pixel pitch than the D810, so would give me as much resolving power as any possible combination in the Nikon DSLR lineup (going with a lens mount adapter on a Nikon 1 mirrorless would open up some interesting possibilities). With the camera oriented vertically, the condor from head to tail would fill the frame and 4 frames across would be able to capture the open wings. I was prepared for 5 frames across, but 354 was at an angle so in the end I just needed the four shots and I would have enough overlap to stitch.

I shot on a carefully leveled tripod with a gimbal head and swept back and forth across the scene constantly in hopes of grabbing 4 or 5 frames where the condor didn’t move or the wind ruffle his feathers. I had previously practiced this with a D4s shooting at 11 fps in constant motion and discovered at such a great focal length I needed 1/5000 sec minimum not to suffer too much blur. But I also needed depth of field to get the width of the bird’s body all in focus so if I shot at f/11 and 1/5000, it would necessitate an ISO of 2500 in full direct sun, not a big issue with a D4s, but a noise monster on a D810 or D7200. As my camera to subject distance at Navajo Bridge limited me to the D7200, I shot at a lower ISO 800, then shot at 1/800 sec and f/11, stopping briefly between pans to minimize camera movement. It would then take two to three seconds to pan across the entire body. I panned both left to right, then back right to left, then back again and just kept shooting. The goal was to get one sequence with an attractive head angle, ample wing spread and of course no motion on the bird’s part between frames. On most passes it was obvious while shooting that there was movement or the head turned away. The sunning lasted four minutes in which I shot 100 frames. Time to download all those shots and try stitching a shot together.

The Software Solution

With 354 angled slightly, for a life-sized image the final dimensions would have to be 7.5 feet from wingtip to wingtip. Of all the sequences I shot, there were several with appealing head angles. Of those, I only got one to successfully stitch using the photo merge panorama function in Lightroom 6.

D’oh, that didn’t work.

Ah, that’s better. Subtracting the overlaps, this stitched image ended up as 10000 pixels wide. My goal was to print at 250 ppi so people could put their noses right up to the print and count the vanes in each feather. Sadly, 10000 pixels at 250 dpi would only yield a 40-inch wide print – why heck, even some puny Red-Tailed Hawk has a wingspan wider than that.

Enter Perfect Resize. Formerly know as Genuine Fractals, Perfect Resize is an upsampling program. It analyzes every detail in your image, then using cleverly written algorithms creates new pixels to bridge the gaps between the original pixels and create a much larger file. You can also upsample in Lightroom or Photoshop, but in my experience, image quality deteriorates more quickly with those methods than with Perfect Resize. Perfect Resize has multiple upsampling methods to choose from. I chose Genuine Fractals, entered 96 inches wide for my destination size, then experimented with the sharpness and smoothness sliders until I got the result I wanted. This is very time-consuming because with such huge files it takes several minutes for Perfect Resize to crunch the data every time you push a slider or enter a new parameter.

Because I started with a very large, very sharp file, I ended up with a great result. Note however, that if you attempt to use Perfect Resize with soft files, you’ll just end up magnifying all the defects and end up with mush. My final file ended up being over 2GB, but when zipped got down to 1.9GB which just made the cut to send online to the printing company.

Summing Up

What a crazy fun and challenging assignment. A lot of things had to come together to get this shot. First I had to find the birds (there are only 70 total in all of Arizona and Utah). Next I needed one to bust a good pose in good light close enough for me to get the frames I needed. I maxed out the capabilities of the camera gear I had available. Finally, I pushed the software as far as I felt it would go and still produce the result desired. I’m pretty amazed that over 75% of the pixels in the final file were made up by software, not captured by the camera. I planned this all out in advance, felt it would be possible, practiced the techniques I’d need, then when the time came, Condor 354 was a champ.

The Plight of the Condor will be showing at the High Country Conference Center in Flagstaff, Arizona from now until Jan 5th, 2016.  The public is welcome so please drop by if you’re in the area.  To learn more about California Condors and how you can support them please visit peregrinefund.org/condor.
