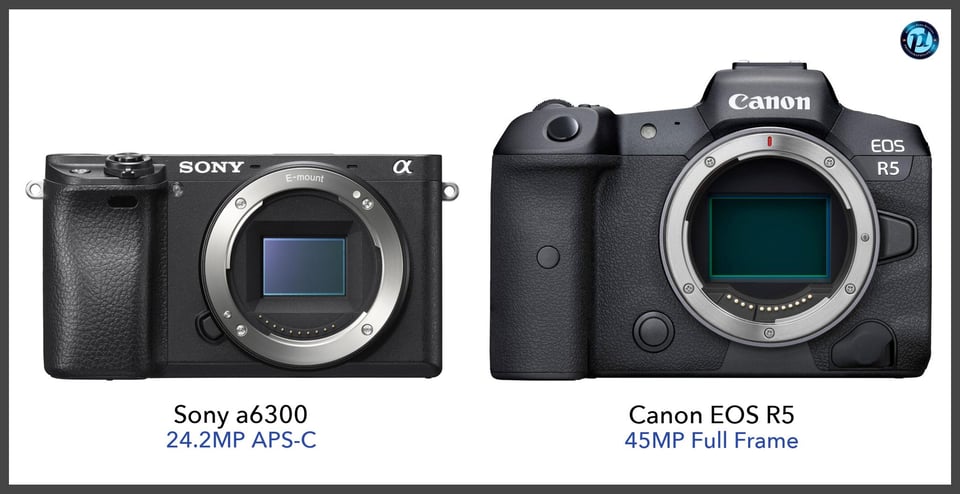

Sony a6300 vs Canon EOS R5 Specifications Comparison
| Camera Feature | Sony a6300 | Canon EOS R5 |
|---|---|---|
| Announced | February 2016 | July 2020 |
| Camera Type | Mirrorless | Mirrorless |
| Sensor Type | CMOS | CMOS |
| Image Processor | BIONZ X | DIGIC X |
| Resolution | 24.2 MP | 45.0 MP |
| Pixel Dimensions | 6000×4000 | 8192×5464 |
| Sensor Dimensions | 23.5 x 15.6 mm (APS-C) | 36.0 x 24.0 mm (Full Frame) |
| Sensor Pixel Size | 3.92µ | 4.39µ |
| Low Pass Filter | Yes | Yes |
| IBIS (In-Body Image Stabilization) | No | Yes |
| Base ISO | ISO 100 | ISO 100 |
| Max Native ISO | ISO 25,600 | ISO 51,200 |
| Extended ISOs | ISO 100-51,200 | ISO 50-102,400 |
| High-Resolution Sensor Shift | No | Yes (JPEG only) |
| Focus Stack Bracketing | No | Yes |
| Pre-Shoot Burst Mode | No | No |
| Fastest Shutter Speed | 1/4000 | 1/8000 |
| Longest Shutter Speed | 30 seconds | 30 seconds |
| Continuous Shooting (Mechanical Shutter) | 11 FPS | 12 FPS |
| Continuous Shooting (Electronic Shutter) | 3 FPS | 20 FPS |
| Notes for High FPS Shooting | None | None |
| Buffer Size (Raw) | 21 frames (11 FPS) | 83 frames (20 FPS), 180 frames (12 FPS) |
| Autofocus System | Hybrid PDAF | Hybrid PDAF |
| Autofocus Points | 425 | 1053 |
| Maximum Low-Light AF Sensitivity (Standardized to f/2, ISO 100) | -1 EV | -4.5 EV |
| Standard Flash Sync Speed | 1/160 | 1/250 |
| Curtain to Protect Sensor at Shutdown | No | Yes |
Video Features | ||
| Maximum Video Bit Depth (Internal) | 8 bits | 12 bits |
| Maximum Video Bit Depth (External) | 8 bits | 12 bits |
| Raw Video | No | Yes |
| 8K Maximum Framerate | N/A | 30 FPS |
| 4K Maximum Framerate | 30 FPS | 120 FPS |
| 1080P Maximum Framerate | 120 FPS | 120 FPS |
| Additional Video Crop Factor | Extra 1.23x crop in 4K 30p; extra 1.14x crop at 1080p 100 / 120 FPS | No |
| Chroma Subsampling | 4:2:0, 4:2:2 (External) | 4:2:2 |
| Video Recording Limit | 30 min | 30 min |
Physical and Other Features | ||
| Card Slots | 1 | 2 |
| Slot 1 Type | SD (UHS-I) | CFExpress Type B |
| Slot 2 Type | N/A | SD (UHS-II) |
| Rear LCD Size (Diagonal) | 3.0 in | 3.2 in |
| Rear LCD Resolution | 0.92 million dots | 2.1 million dots |
| Articulating LCD | Single Axis | Fully Articulating |
| Touchscreen | No | Yes |
| Viewfinder | EVF | EVF |
| Viewfinder Magnification | 1.07x (0.70x FF equiv.) | 0.76x |
| Viewfinder Resolution | 2.36 million dots | 5.76 million dots |
| Viewfinder Coverage | 100% | 100% |
| Voice Memo | No | Yes |
| Headphone Jack | No | Yes |
| Microphone Jack | Yes | Yes |
| Built-in Flash | Yes | No |
| GPS | No | No |
| Bluetooth | No | Yes |
| WiFi | Yes | Yes |
| USB Type | Type B 2.0 | Type C 3.1 |
| Battery Type | NP-FW50 | LP-E6NH |
| Battery Life (Viewfinder) | 350 frames | 220 frames |
| Battery Life (Rear LCD) | 400 frames | 320 frames |
| Battery Life (Eco Mode) | N/A | 490 frames |
| Weather Sealed | Yes | Yes |
| Weight (Body Only w/ Battery + Card) | 404 g (0.89 lbs.) | 738 g (1.63 lbs.) |

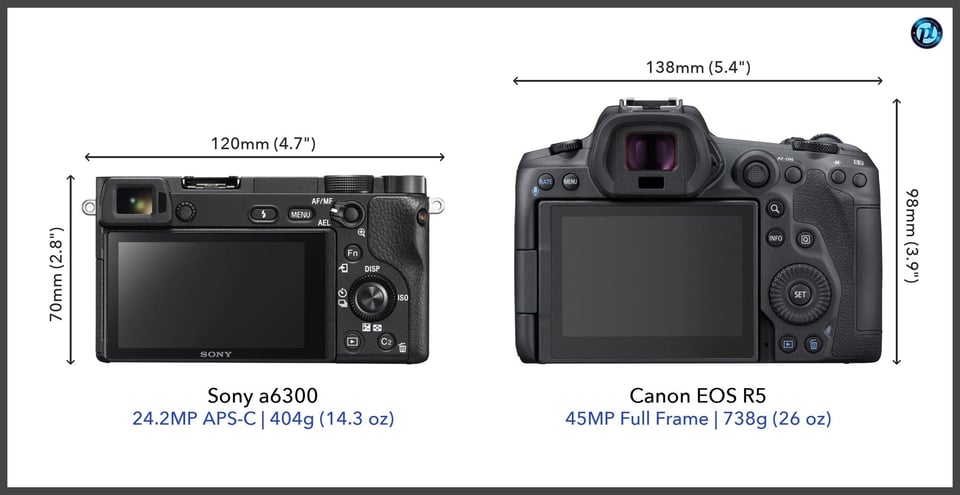

| Dimensions (LxHxD) | 120 x 70 x 49 mm (4.7 x 2.8 x 1.9″)1 | 138 x 98 x 88 mm (5.4 x 3.8 x 3.5″) |
Price Comparison | ||
| MSRP, Body Only | $1000 (Discontinued) | $3900 (Check Current Price) |
| Used Prices (Affiliate) | Sony a6300 Used Prices | Canon EOS R5 Used Prices |
| 1The Sony a6300’s depth measurement in this table excludes the optional rubber cap for the viewfinder | ||
Questions? Go to our forum, where you can start a conversation and talk to photographers about these two cameras!
